AG993

Name: AG993
Brand: Tersus GNSS

Automated steering system with TAP PPP correction built-in.

Unlock next-level crop performance with AG993—precision agriculture made smarter, faster, and more reliable for every acre you manage.

Request Quote View Specs

TAP Service

Tersus Advanced Positioning(TAP) provides global satellite-based Precise Point Positioning(PPP) service. TAP allows farmers to obtain high-precision positioning and navigation, without having to worry about network and radio base station anymore.

High Accuracy Steering

The AG993 supports L-band based TAP service and regular RTK. The AG993 can use multiple correction sources to deliver better than 2.5cm accuracy, which ensures autosteering accuracy and efficiency in various working modes and scenarios.

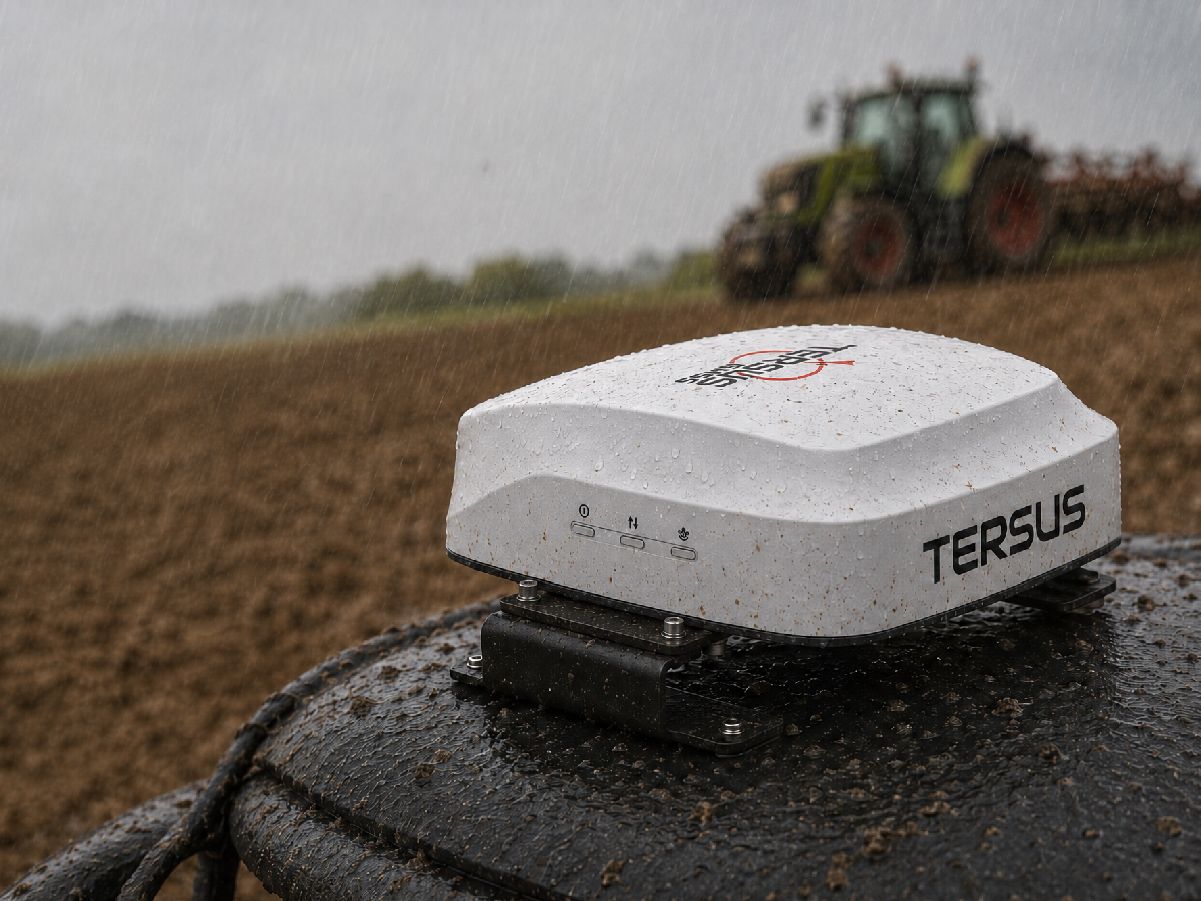

Integrated Connectivity

The GC30 Guidance Controller is highly integrated with Tersus anti-interference GNSS board, high precision IMU, 4G modem, WiFi, Bluetooth and internal radio. All-in-one solution provides quick and efficient device&cable installation.

User-Friendly Software

The TersusAG software provides clear interface, intuitive controls and friendly interactive operations. Simplify your display setup and help farmers easily control their autosteering vehicles.

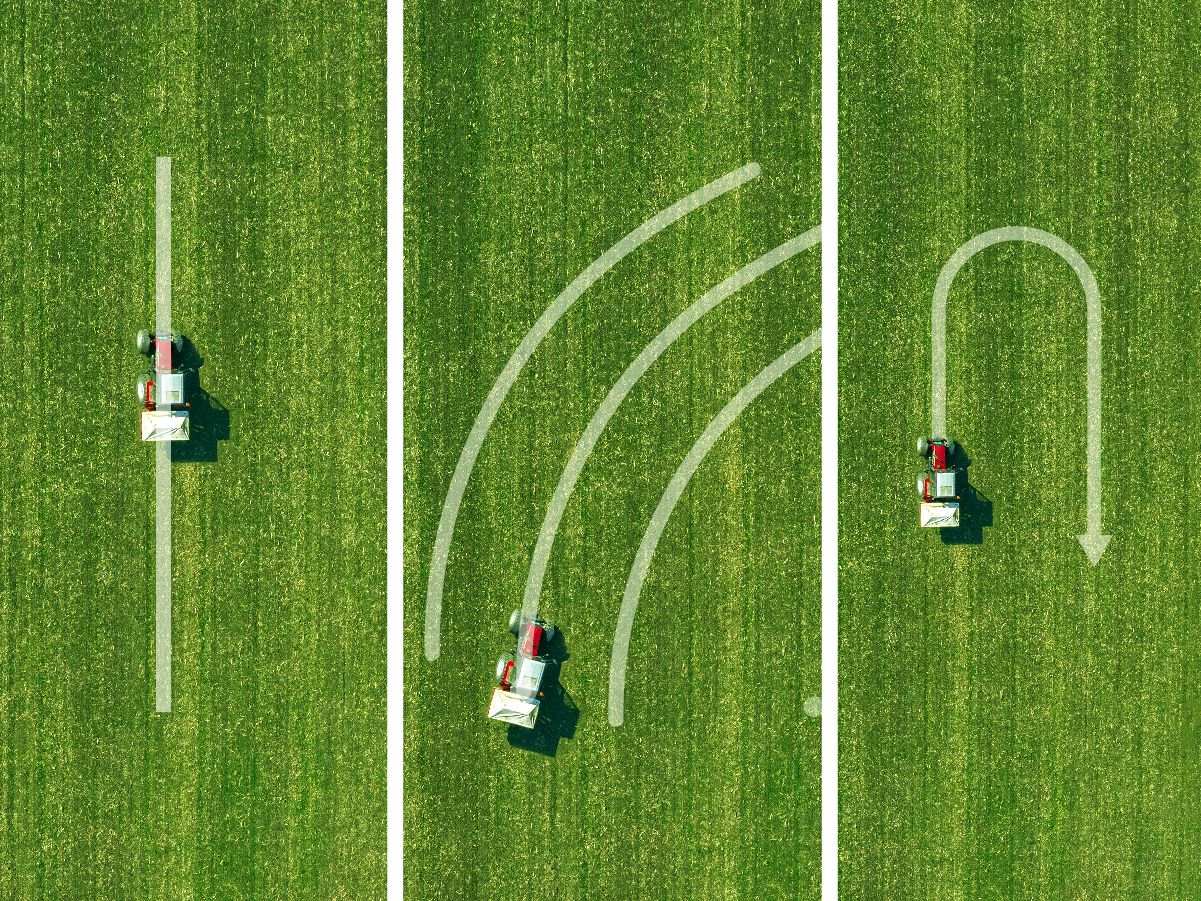

Multiple Work Modes

Multiple guidance line & boundary types supported, to meet different working scenarios requirements.

Wide Compatibility

The hardware and control of the AG993 are compatible with over 90% agricultural vehicles of various brands.

Technical Specifications

System TypeAutomatic steering system (guidance controller + tablet + electric steering wheel)

ApplicationsTractors, harvesting machines, plant protection machinery, rice transplanters

Operation ScenariosSowing, cultivating, trenching, ridging, spraying, transplanting, land consolidation, harvesting

FrequenciesGPS L1C/A, L2C, L2P, L5C; GLONASS L1C/A, L2C/A; BeiDou B1I, B2I, B2a, B3I; Galileo E1, E5a, E5b; QZSS L1C/A, L2C, L5; L-Band

RTK Accuracy (H/V)8mm+1ppm / 15mm+1ppm RMS

TAP (PPP) Accuracy<5cm after 3–5 min convergence

TAP CoverageGlobal (oceans, deserts, mountains, high altitudes)

Correction FormatsRTCM 2.3/3.x, CMR, CMR+

Solution Update Rate20 Hz

IMUSupported (integrated in GC30 controller)

IMU CalibrationReduces roll angle error from controller installation

Network RTKCORS / NTRIP (IP, port, username, password)

Radio RTK ProtocolsTRANSPARENT, TT450, SOUTH, SATEL, TRIMMK3

Radio Channels10 preset + customized

Tapfill FallbackAuto-switches to TAP when RTK connection lost

Tablet Connectivity4G modem, Bluetooth, Wi-Fi, CAN Bus, Serial, Ethernet, USB

Controller PortsCOM1 (tablet), COM2 (motor/remote/WAS), RADIO (external antenna)

CPU8-core, 2.0GHz

Memory3GB RAM, 32GB ROM

Operating SystemAndroid 11

Display10.1-inch capacitive touchscreen

Resolution1280 x 800

Brightness600 nits

ProtectionIP67

Input Voltage Range9–36 V DC

Protection FeaturesOvercurrent & overvoltage protection, fanless design

Motor TypeHigh-torque electric steering motor

ProtectionIP55

CharacteristicsLow noise, minimal heat, precise steering control

CompatibilityMost tractor types

Steering ControlElectric motor wheel with spline adapter

Wheel Angle SensorOptional accessory

Remote Control PanelOptional accessory

U-Turn ModesStandard U-turn, Fishtail U-turn

Guidance LinesAB line, boundary setting, line reset/shift

View Modes2D / 3D switching

SoftwareTersusAG automatic driving software

PlatformAndroid 11 or above tablet

Page Response Time≤1 s

Continuous Operation24 hours without lag

Task ManagementCloud sync, share codes, upload/download

Farm ManagementField creation, export, share

Controller Protection (GC30)IP67

Tablet Protection (TC120)IP67

Motor Protection (TES30)IP55

Standard AccessoriesGC30 controller, TC120 tablet, TES30 motor, main cable, steering wheel, camera, power switch mount, motor brackets (A & U), tablet bracket, spline, screw pack, warranty card

Optional AccessoriesRadio antenna, steering wheel knob, wheel angle sensor, remote control panel + cable, multifunctional steering wheel cover (400mm)
