David30

Name: David30
Brand: Tersus GNSS

Dual-antenna GNSS/INS heading receiver for autonomous platforms.

Full-Constellation High Precision GNSS Receiver

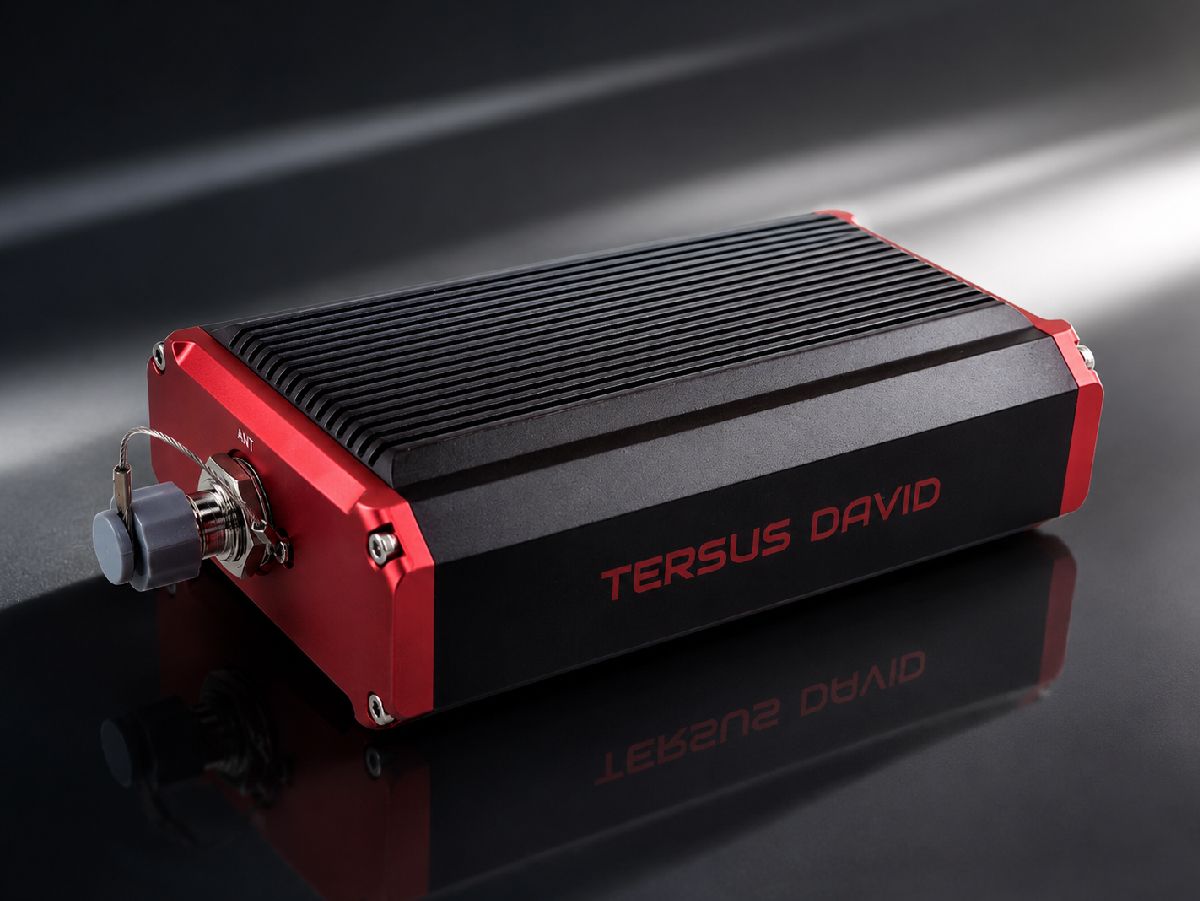

Tersus David30

The Tersus David30 is a multi-constellation high precision GNSS receiver which offers centimeter-accurate positioning. It is designed for intelligent transportation, construction, machine control, precision agriculture, and navigation applications.

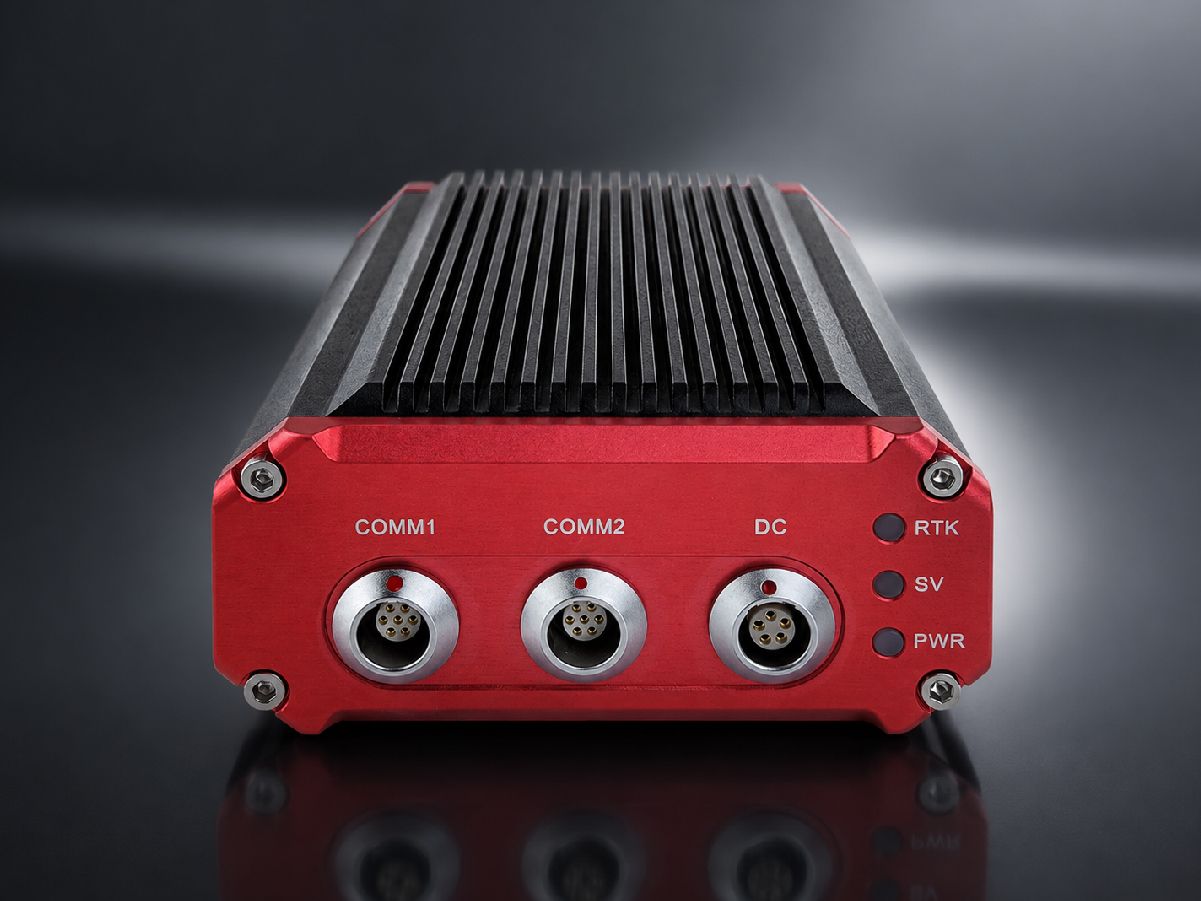

Characteristics

The David30 GNSS receiver is built for outdoor environments with IP67-rated enclosure. The compact palm size makes it easy to integrate with various application systems.

Features

Supports multi-constellation including BeiDou, GPS, GLONASS, Galileo, QZSS and SBAS
Supports 576 channels
Supports RTCM2.x/3.x, CMR/CMR+ corrections
Flexible for integration in different applications
Data update rate up to 20Hz
Input power range is 5~28V DC ---Note: Input of 28~36V DC can be customized
IP67-rated dust- & waterproof enclosure, for reliability in harsh environmental conditions
Supports Nuwa surveying software
In-built 8GB (optional: 32 GB) storage benefits data collection

Technical Specifications

Signal TrackingGPS L1C/A, L2C, L2P, L5; GLONASS L1C/A, L2C/A; BDS B1, B2, B3 (BDS-3 supported); Galileo E1, E5a, E5b; QZSS L1 C/A, L2C, L5; SBAS: WAAS, EGNOS, GAGAN, SDCM, MSAS

Channels576

Single Point Positioning (H/V)1.5m / 3.0m

DGPS Positioning (H/V)0.25m / 0.5m

RTK Accuracy (H/V)8mm+1ppm / 15mm+1ppm

High-Precision Static (H/V)2.5mm+0.1ppm / 3.5mm+0.4ppm

Initialization (typical)<10s

Initialization Reliability>99.9%

C/A Code Accuracy10cm

P Code Accuracy10cm

Carrier Phase Accuracy1mm

Cold Start TTFF<50s

Warm Start TTFF<30s
