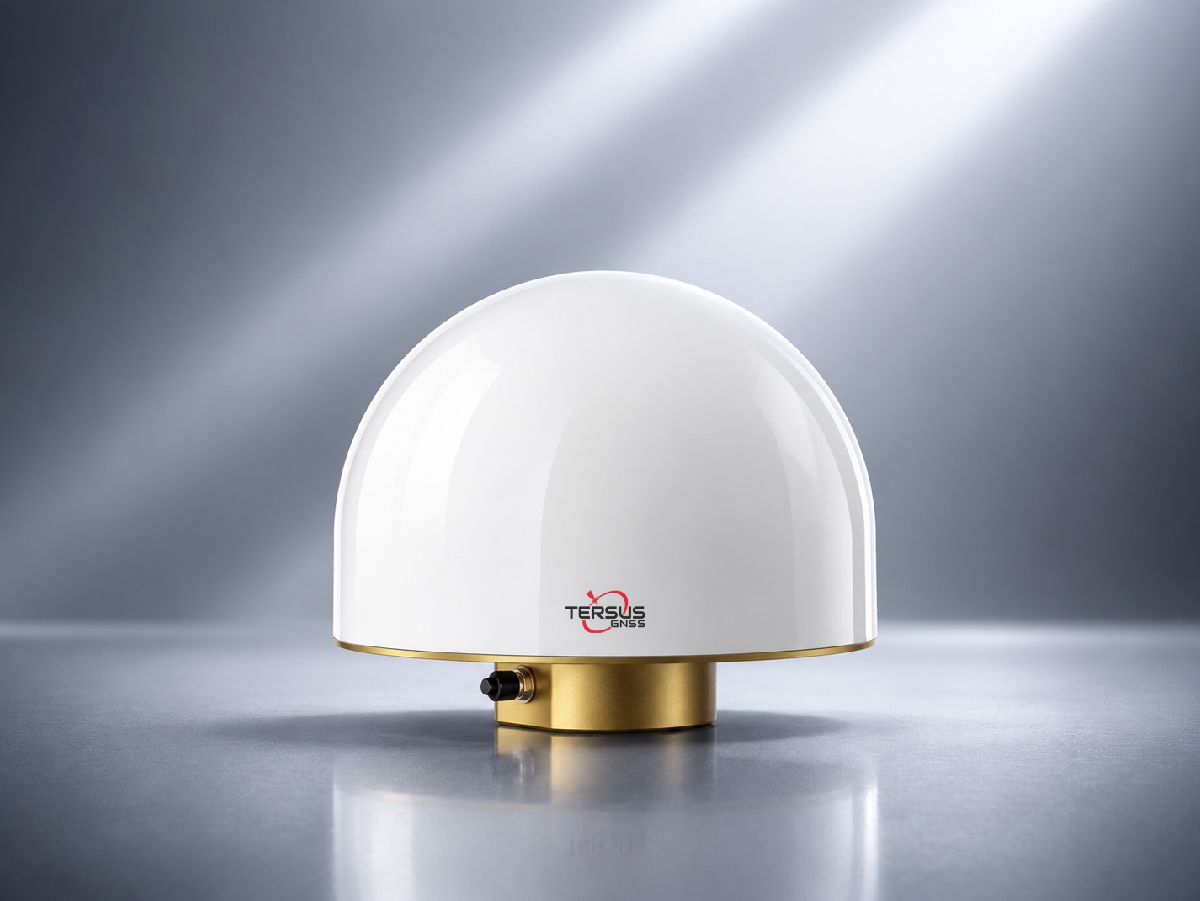

AX4E06M
Mini 3D Choke Ring Antenna
L1/L2/L5 multi-band OEM antennas optimised for low multipath, high gain and stable phase centre for precision positioning systems.
- Supports GPS L1/L2/L5, GLONASS L1/L2/L3, BeiDou B1/B2/B3, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, L-Band
- High gain with extraordinary low elevation signal tracking
- High phase center stability ensures sub-millimeter level positioning accuracy
- Strong anti-interference for challenging environment operations
- Ruggedized structure, mini design, lightweight, IP67 water/dust resistance
Technical Specifications
FrequencyL1 / L2 / L5
Gain>40 dBi peak
Phase Centre Variation<1 mm
IP RatingIP67
AX4 SeriesChoose your model
Same platform, 5 configurations. Each model has its own page with full specifications and downloads.
Documents
AX4 Series Datasheet
AX4E02 Datasheet
AX4E03 Datasheet
AX4E05 Datasheet
AX4E06M Datasheet
AX4E07 Datasheet
Firmware, software installers and configuration tools for this product are in the MyTersus portal. Open product downloads
