BX50 Series
High-performance GNSS receiver board family (BX50M, BX50L, BX50 EVK).
BX50 Series multi-frequency GNSS OEM board with TAP
Multi-frequency, multi-constellation
Tracks all current GNSS constellations and almost all frequencies. Provides flexible positioning options.

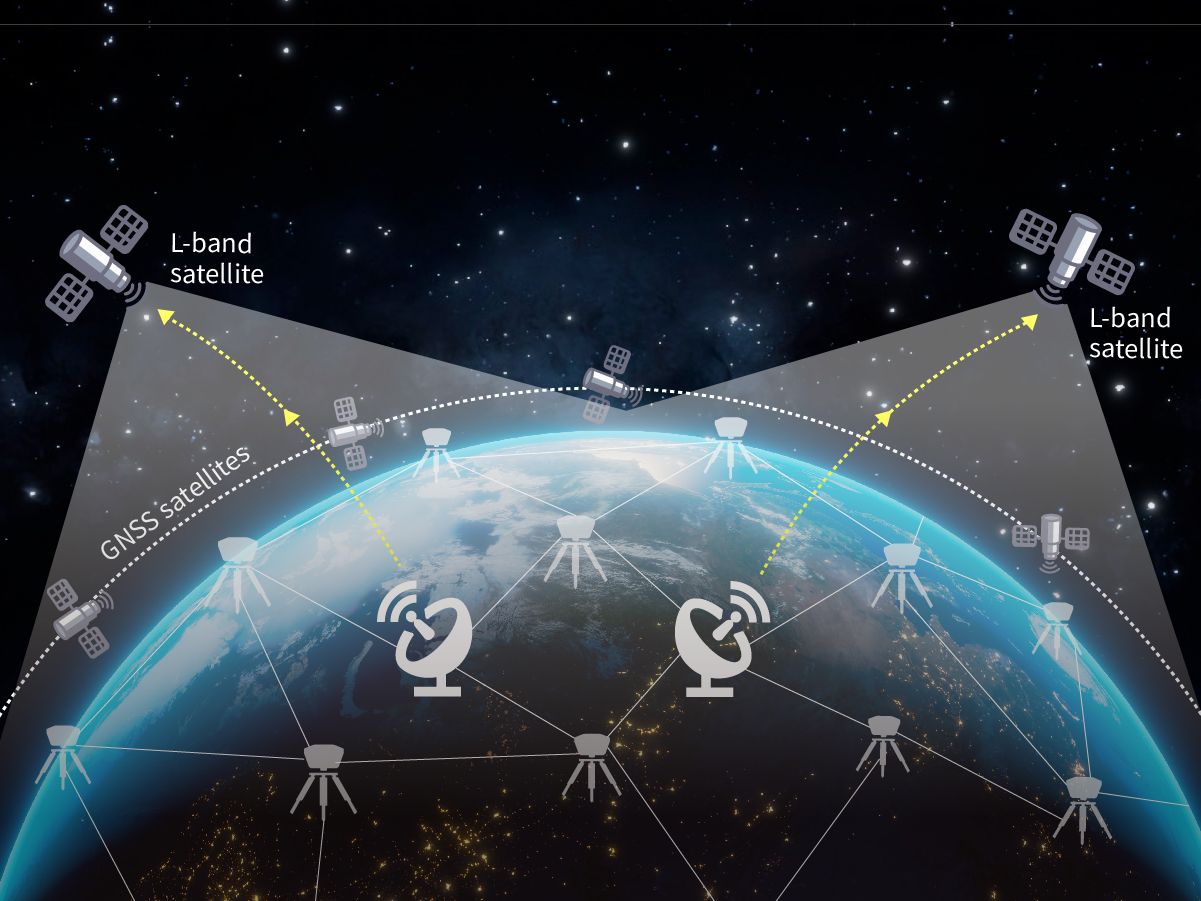

TAP Service
Directly receives corrections from satellites, ensuring 2.5 cm accuracy with no need for local RTK base stations or CORS.
Tersus ExtremeRTK™ GNSS technology
Tersus self-developed technology delivers centimeter-level RTK positioning accuracy even in challenging environments.
Anti-interference
Self-developed advanced algorithms provide real-time interference visualization and mitigation.
Easy to integrate
Flexible interfaces such as COM, USB, CAN. Support PPS and event mark. Pin-to-pin compatible with major GNSS OEM boards on the market.
Low Power Consumption
Standard power consumption is down to 1.9 W, ideal for integrated applications with a high demand for low power consumption.
BX50 SeriesChoose your model
Same platform, 3 configurations. Each model has its own page with full specifications and downloads.
What changes across the BX50 Series
FormEvaluation kit around the BX50M boardRTK boardRTK board
BandsL1 + L2 + L5L1 + L5L1 + L2 + L5
Weight—44 g24 g
Power—3.3 V, 1.9 W typ.3.3 V, 1.9 W typ.
Interfaces—RS-232 ×1 + LVTTL ×2, USB 2.0, CAN; 24-pin + 6-pin header, Trimble BD970 pin-compatibleLVTTL ×3, USB 2.0, CAN; 28-pin header, NovAtel OEM6 pin-compatible
Size—100 × 60 mm46 × 71 mm
Serial PortsLVTTL x3RS-232 x1, LVTTL x2LVTTL x3
IO Connector28-pin header24-pin header + 6-pin header28-pin header
Pin to Pin CompatibleNovatel OEM6Trimble BD970Novatel OEM6
Documents
Firmware, software installers and configuration tools for this product are in the MyTersus portal. Open product downloads
