MX206
Ultra-compact 17 × 22 mm LGA-54 RTK module for OEM integration.
MX206 multi-frequency GNSS module with TAP service

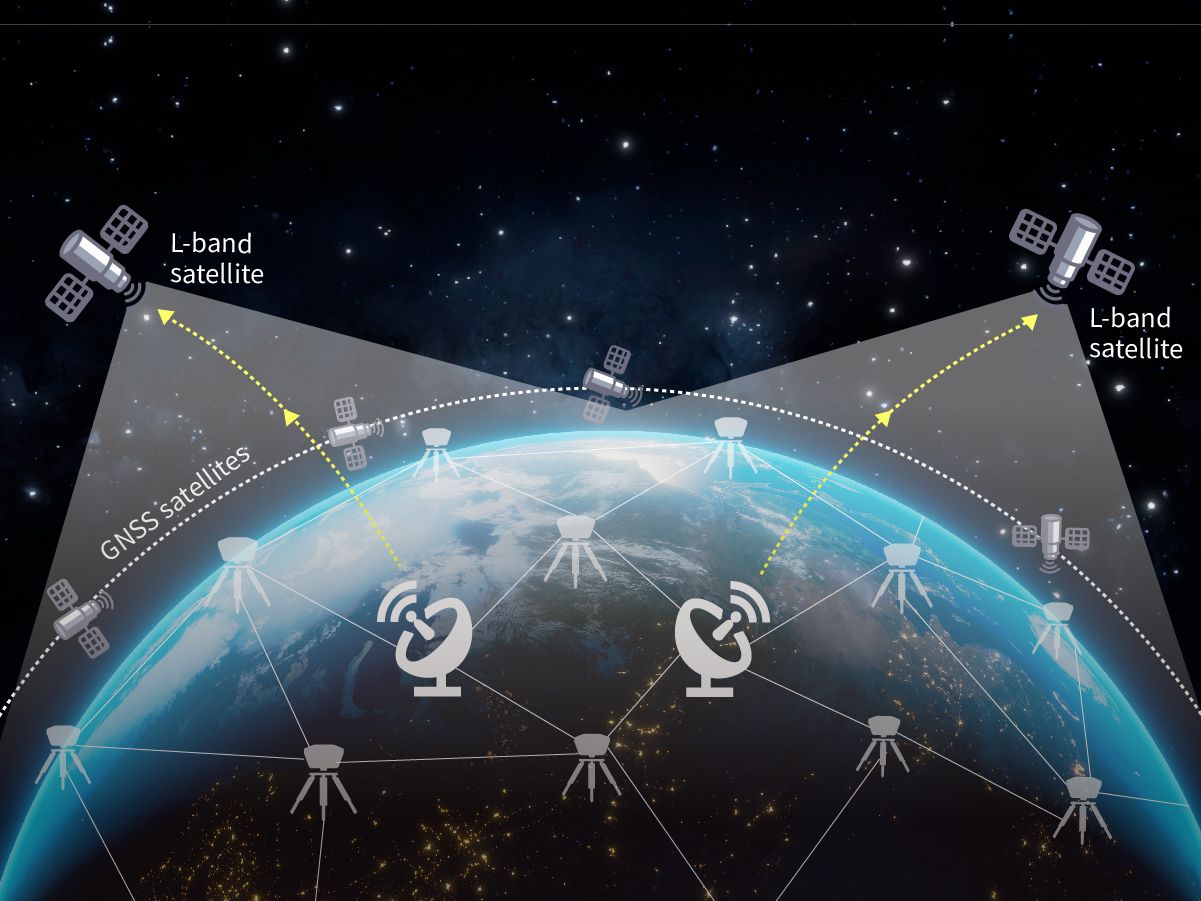

TAP Service
Directly receives corrections from satellites, ensuring 2.5 cm accuracy with no need for local RTK base stations or CORS.
Tersus ExtremeRTK™ GNSS technology
Tersus self-developed technology delivers centimeter-level RTK positioning accuracy even in challenging environments.
Anti-interference
Self-developed advanced algorithms provide real-time interference visualization and mitigation.
Easy to integrate
Ultra-compact 17×22×2.4 mm LGA-54 package. Industry-standard pinout with rich interfaces: 3×UART, 2×CAN, SPI Master/Slave, I²C, 2×PPS, and Event Mark.
Multi-frequency, multi-constellation
Tracks all current GNSS constellations and almost all frequencies. Provides flexible positioning options.
Low Power Consumption
Standard power consumption is down to 350mW, ideal for integrated applications with a high demand for low power consumption.
Technical Specifications
Signal TrackingGPS: L1 C/A, L1C, L2C, L5; GLONASS: L1OF, L2OF; BeiDou: B1I, B1C, B2I, B2a, B2b, B3I; Galileo: E1, E5a, E5b, E6; QZSS: L1 C/A, L1C, L2C, L5; NavIC: L5; SBAS: L1; PPP: PPP-B2b, QZSS L6, Galileo HAS E6
GNSS Channels1040
Single Point Positioning (H/V)1.5m / 2.5m
RTK Accuracy (H/V)7mm+1ppm / 15mm+1ppm
TAP SupportYes
C/A Code Accuracy10cm
P Code Accuracy10cm
Carrier Phase Accuracy1mm
Cold Start TTFF30s
Hot Start TTFF2s
Timing Accuracy (RMS)10ns
Velocity Accuracy (RMS)0.03m/s
Initialization (typical)<5s
Initialization Reliability>99.99%
DR Accuracy0.2%
INS Solution Delay≤5ms
RTK Solution Delay≤50ms
Capture Sensitivity-145dBm
Tracking Sensitivity-160dBm
Max. Velocity≤550m/s
Max. Acceleration≤4g
IMU SensorASM330LHH
Correction FormatRTCM 3.3
Data OutputNMEA-0183, Tersus Binary Format
Max. Update Rate20Hz
UARTx3
I2Cx1
SPI Masterx1
SPI Slavex1
CANx2
PPS Outputx2
Event Markx1
Size17x22x2.4mm
PackageLGA 54pin
Weight1.88g
GradeIndustrial Grade
Input Voltage3.3V DC
Power Consumption (typical)350mW
Operating Temperature-40°C ~ +85°C
Storage Temperature-55°C ~ +125°C
