MVP 100
UAV-mounted LiDAR for corridor mapping and topographic projects.
Base-Station-Free Mobile Mapping System
- 3–5 cm Accuracy
- Survey-grade precision with PPK
- All-in-One Payload
- LiDAR, camera, GNSS, IMU integrated
- Triple Returns&300 m Range
- Reliable ground extraction on Plus
- Powered by TAP (PPP)
- Base-Station-Free Workflow

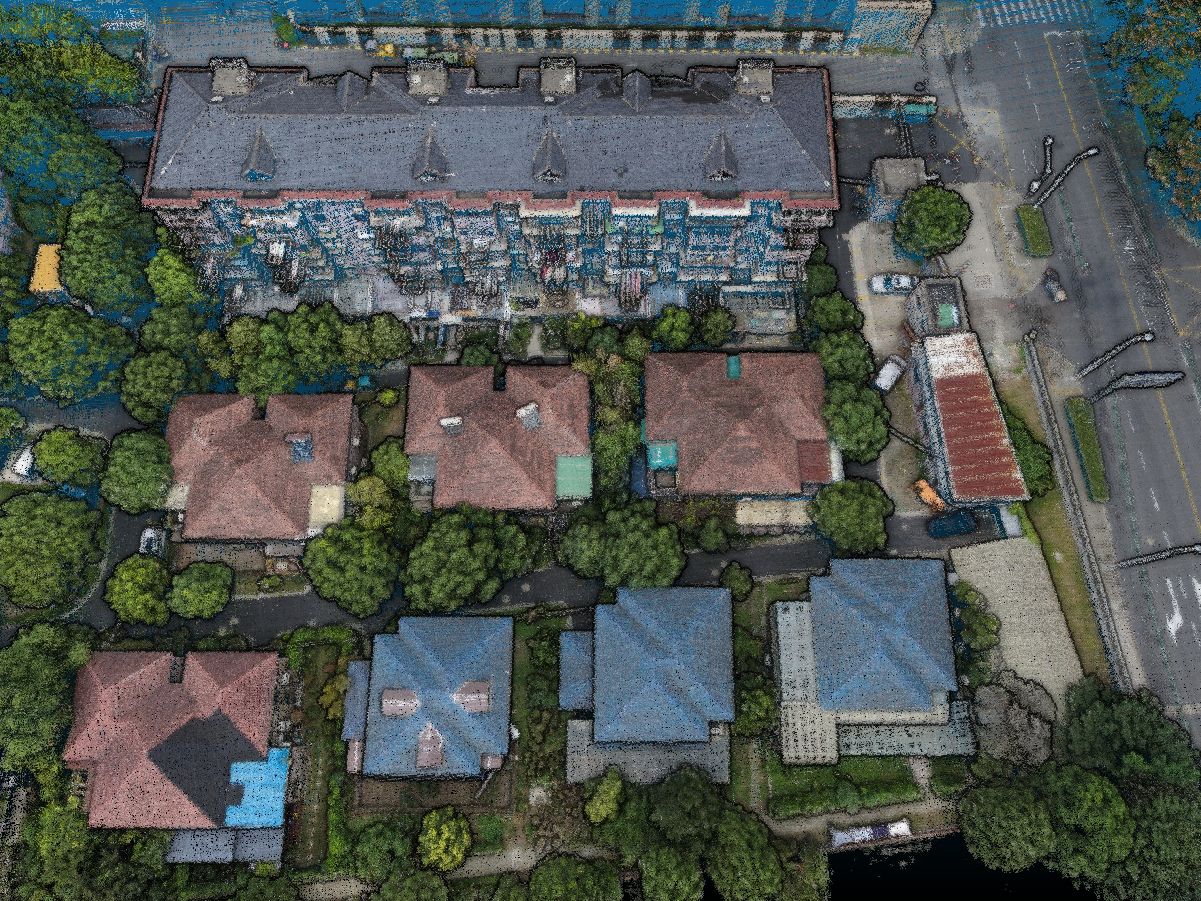

Survey-Grade Accuracy
Typical absolute point cloud accuracy of 3–5 cm with PPK, with LiDAR measurement accuracy of 10 mm and precision of 5 mm, delivering reliable survey-grade results.

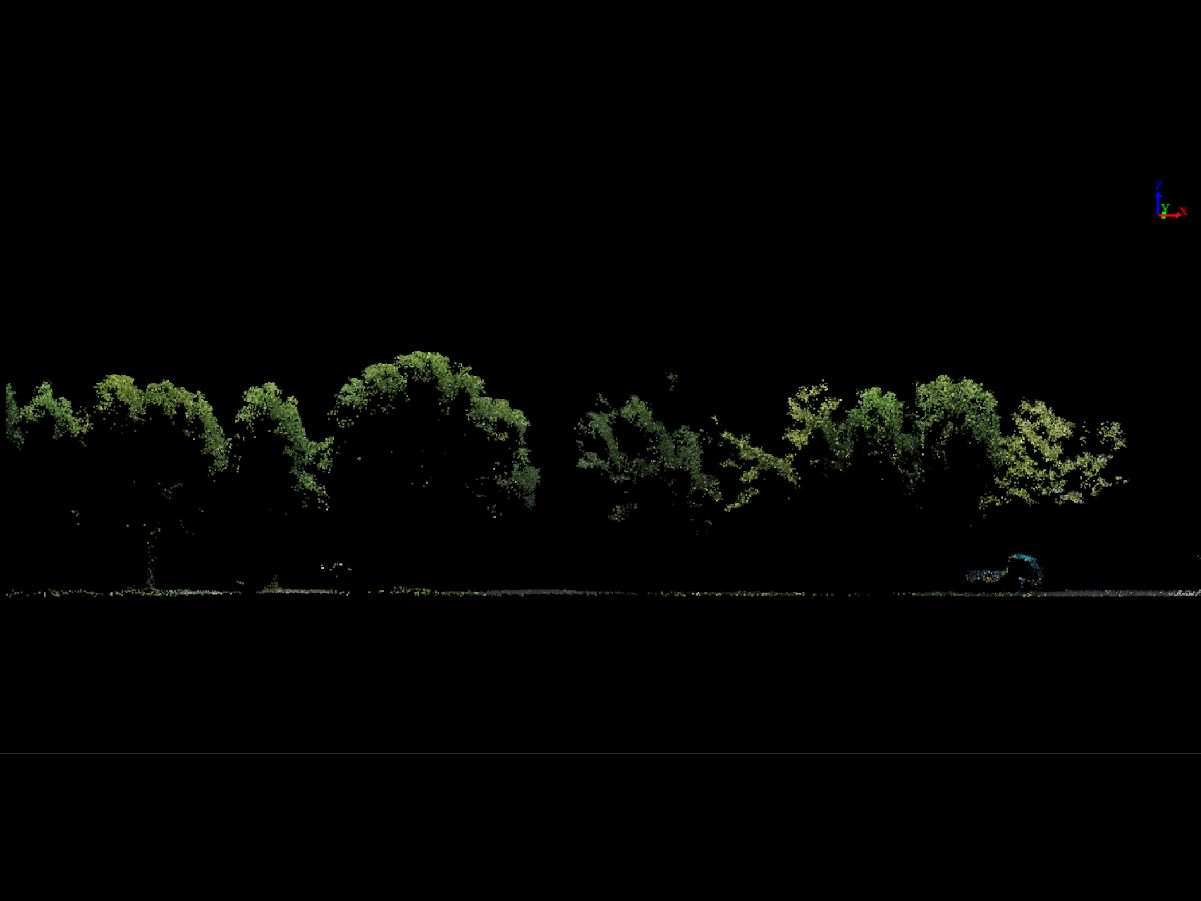

Exceptional Penetration
With triple returns and a detection range of up to 300 m on MVP100 Plus, the system reliably extracts ground points beneath dense vegetation and complex terrain.

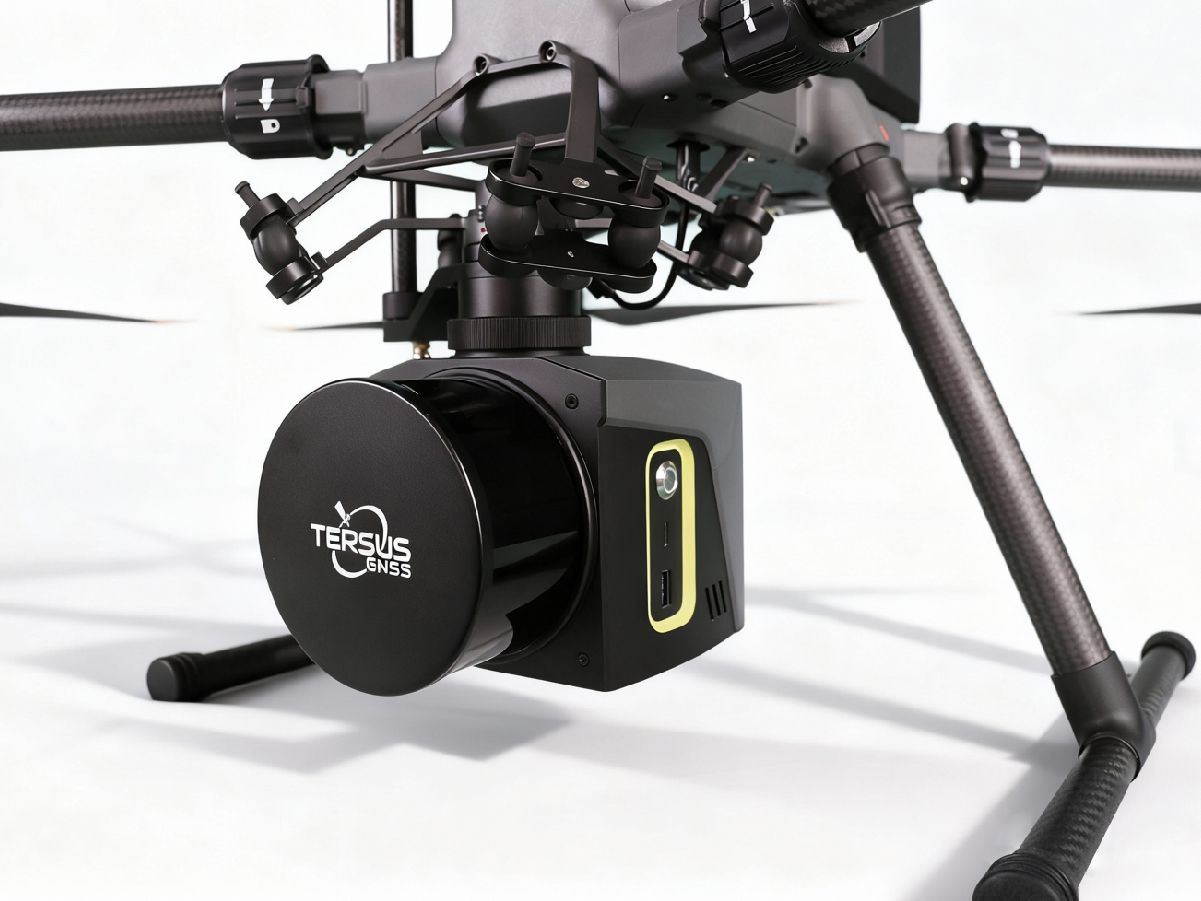

Lightweight & All-in-One

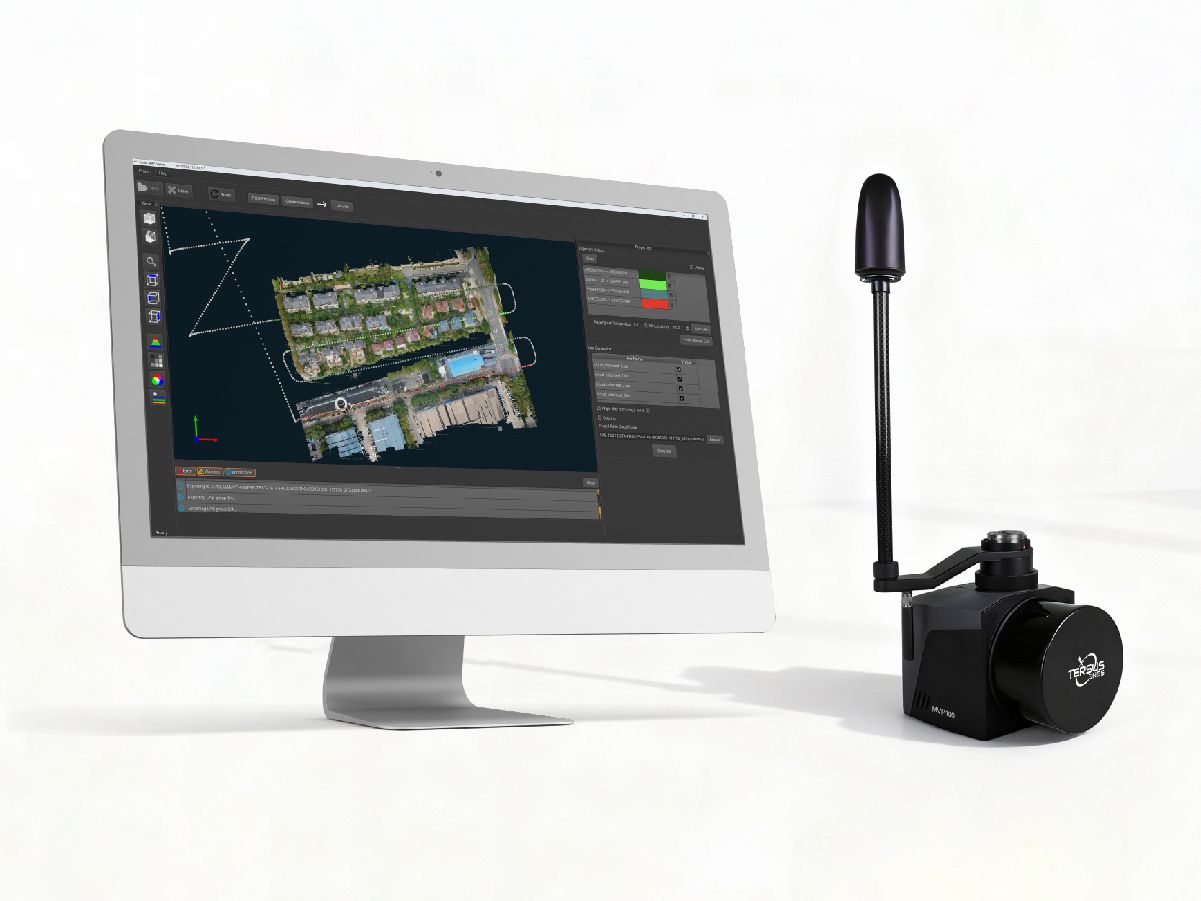

Efficient Workflow
One-click processing in Tersus MVP Engine streamlines trajectory calculation, georeferencing, and point cloud optimization. TAP enables base-station-free mapping for faster, more flexible deployment.
Applications

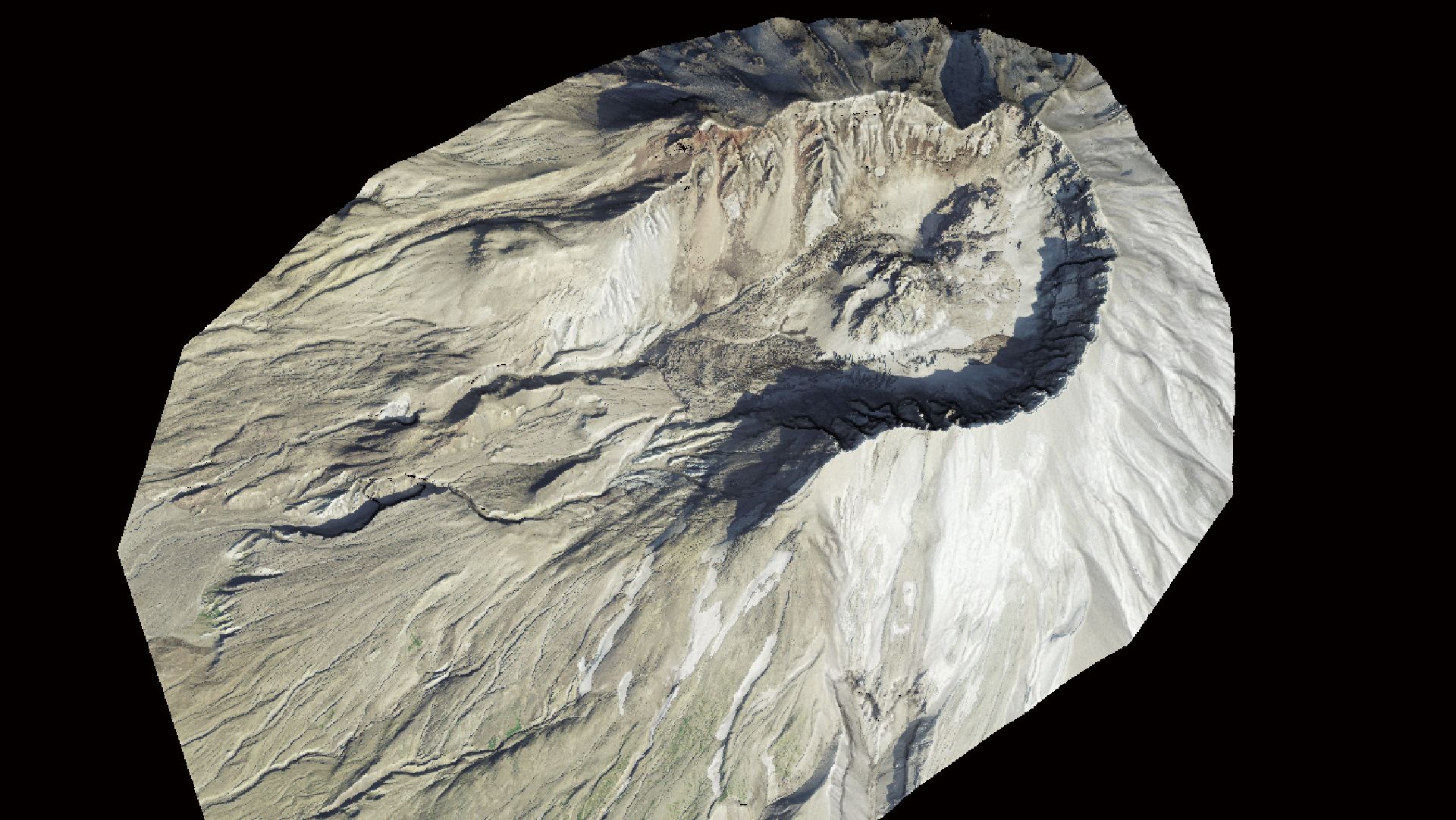

Terrain Surveying
Efficiently acquire dense point clouds for detecting downed power lines, hazardous trees, and other potential hazards.

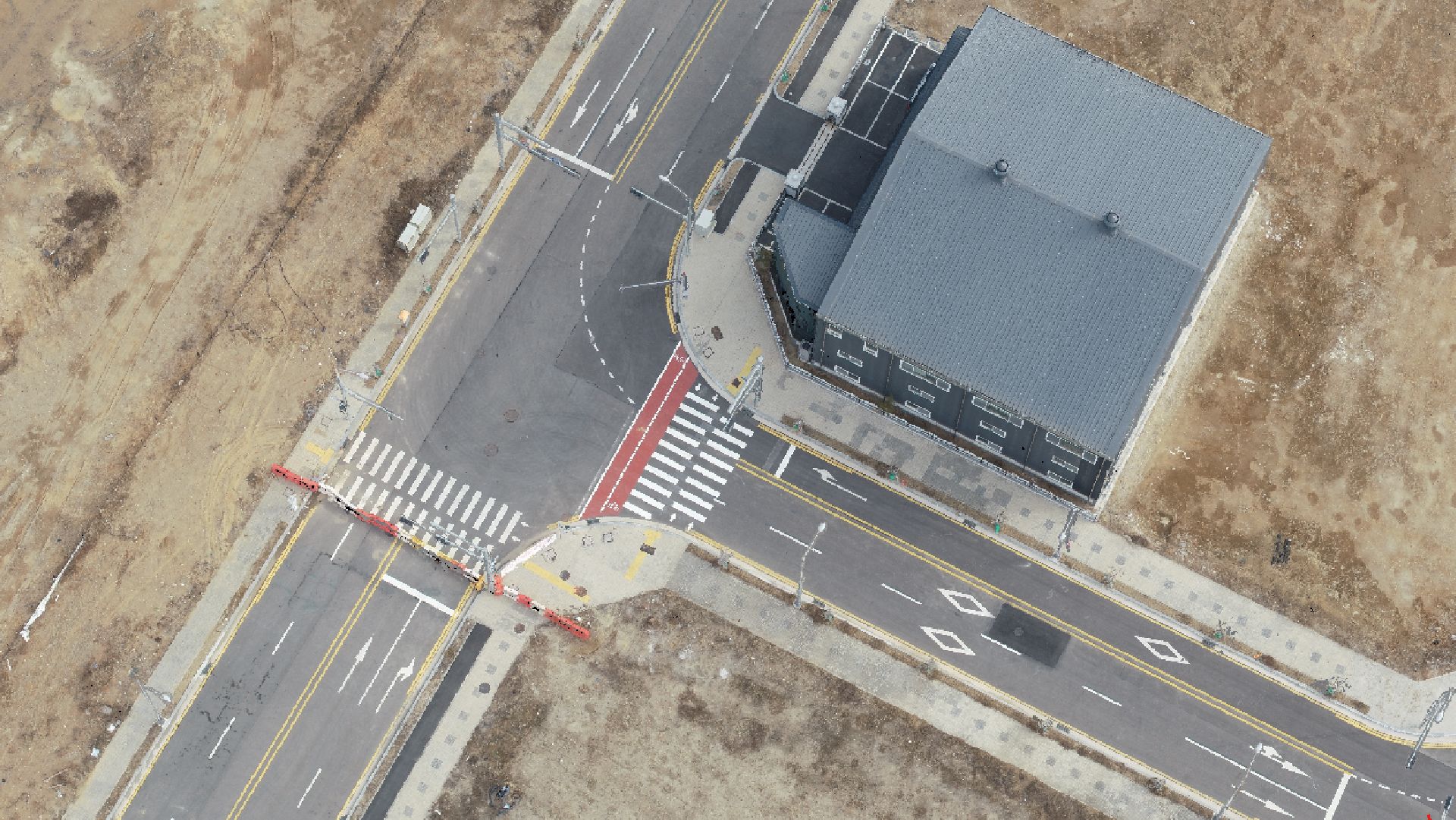

Road Construction
Extremely precise 3D LiDAR data for purposes like analysis of road infrastructure, locating light poles and traffic signs, new planning and asset management.

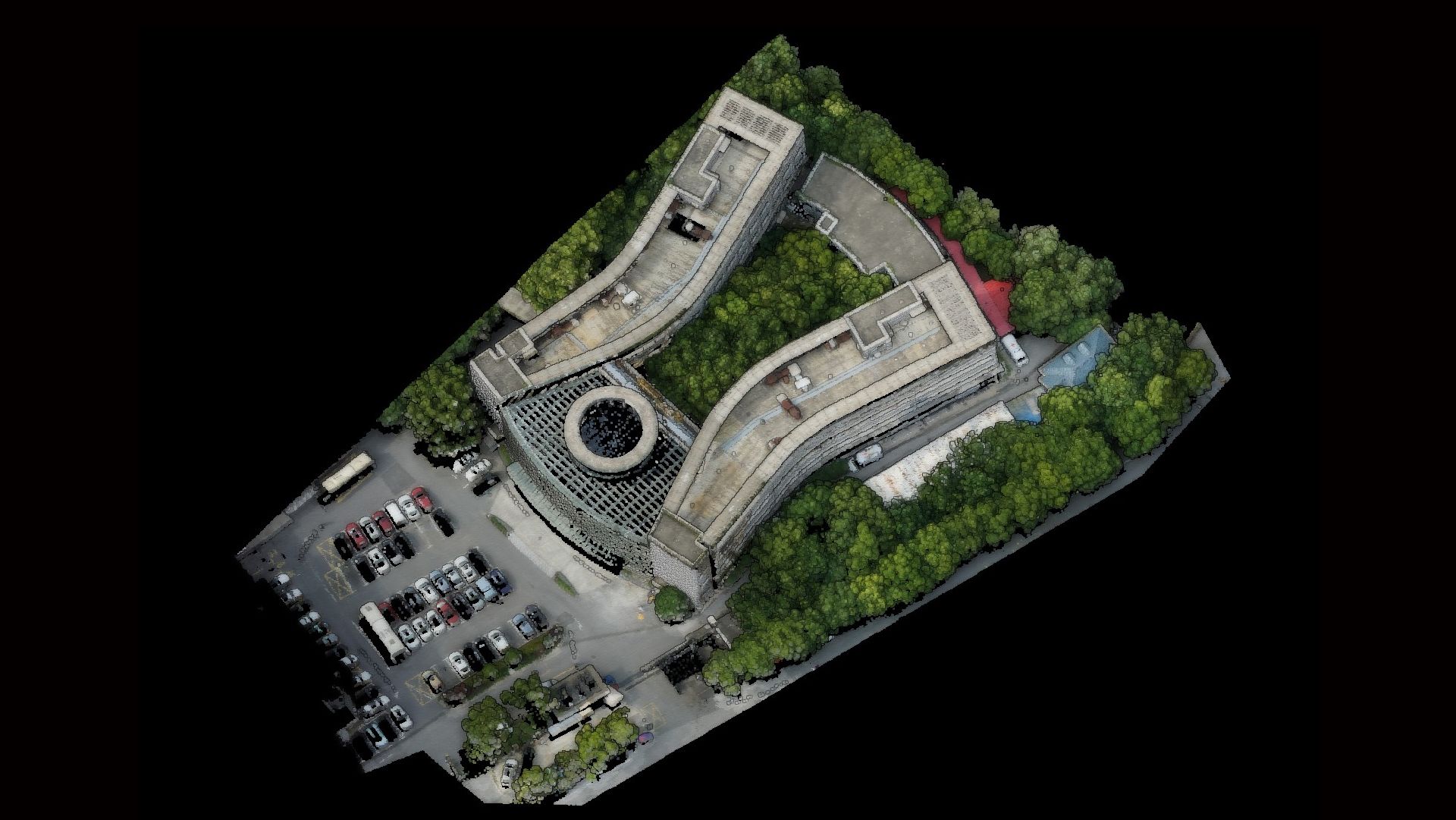

Building Management
In building construction and infrastructure, MVP offers detailed and accurate point cloud data for smart cities, street mapping, and BIM.

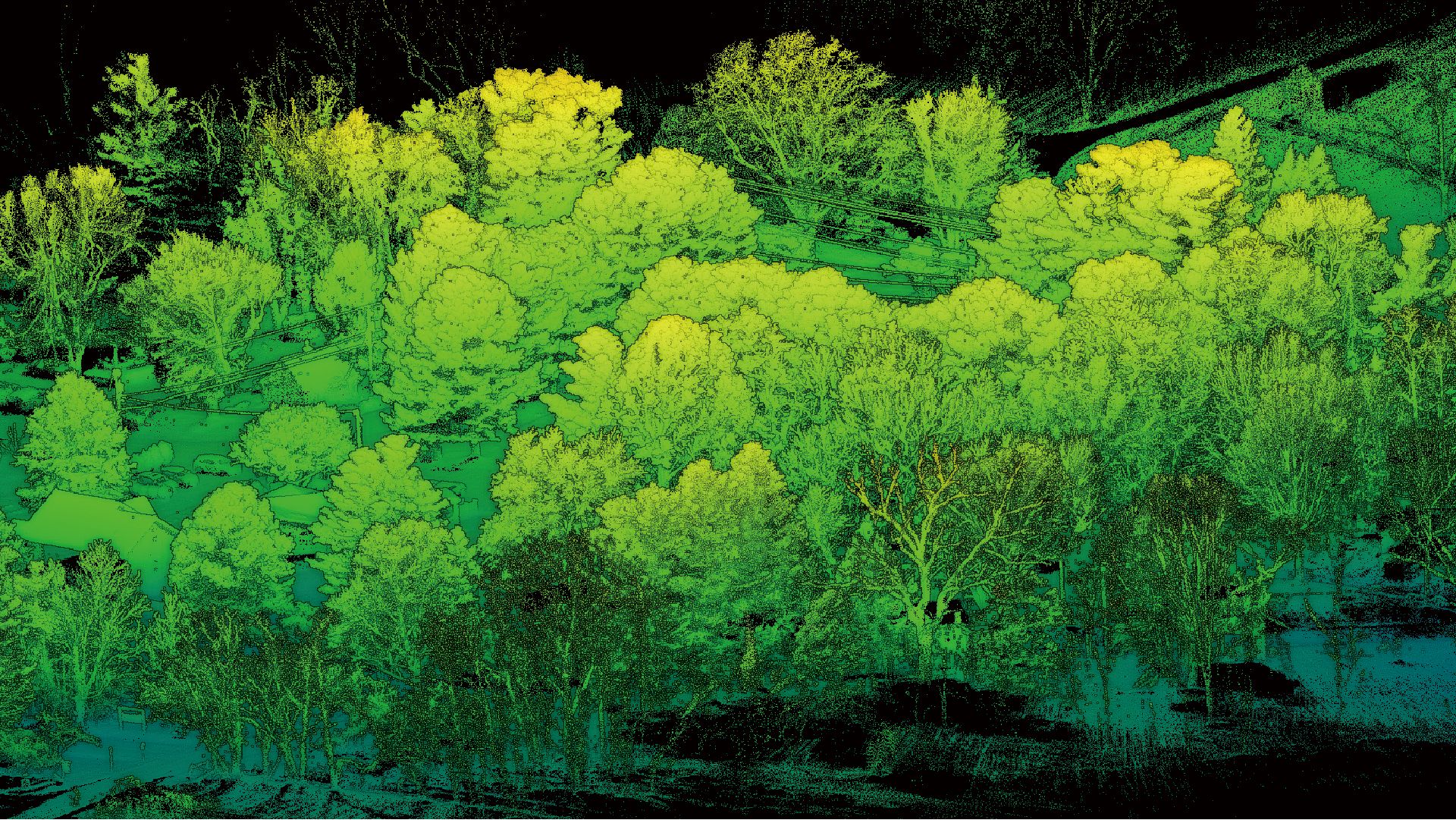

Forestry Analysis
Provide detailed information on forest structures, including tree height, diameter, volume, leaf area index, etc. Also efficiently obtain under-tree ground surface information for digital models.

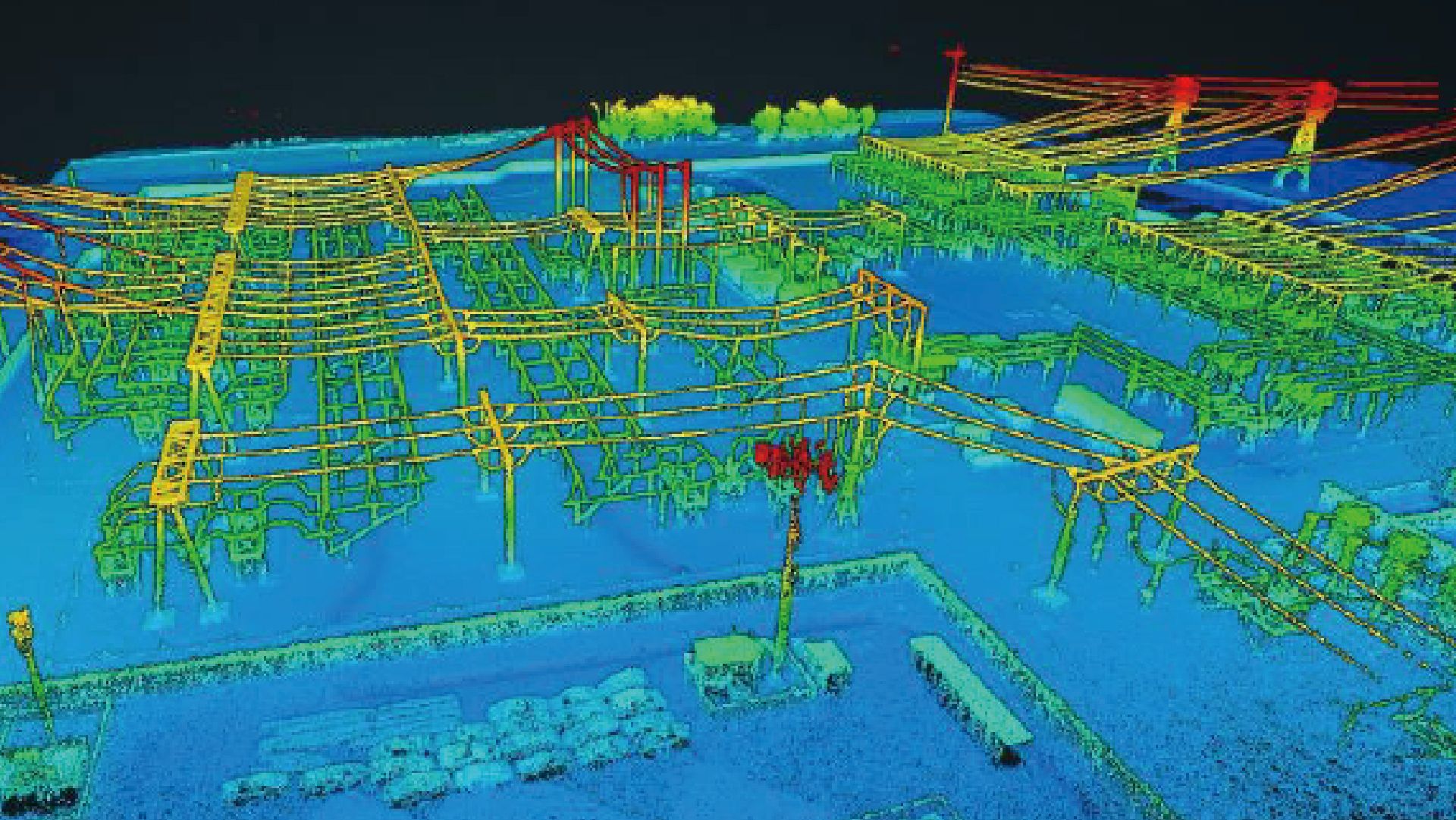

Power Line Inspection
Efficiently acquire dense point clouds for detecting downed power lines, hazardous trees, and other potential hazards.
Technical Specifications
Weight1.45 kg
Power Supply / Voltage13-18V DC
Power Consumption20W
Operating Temperature-10°C ~ +50°C
Storage Temperature-30°C ~ +60°C
Data Storage256GB USB, up to 1TB
Scanner ModelHesai Pandar XT-32
Laser ClassClass 1 Eye Safe
Wavelength905 nm
Operating PrincipleTOF
Measurement Range0.05–120 m
Field of View (Horizontal)360°
Field of View (Vertical)31° (-16° ~ +15°)
Horizontal Resolution0.09° (5Hz) / 0.18° (10Hz) / 0.36° (20Hz)
Vertical Resolution1°
Frame Rate5 Hz, 10 Hz, 20 Hz
Returns SupportedDual Returns / Single Return (Last, Strongest, First)
Max Effective Measurement Rate640,000 pts/sec (Single) / 1,280,000 pts/sec (Dual)
LiDAR Accuracy / Precision10mm / 5mm
Point Cloud Accuracy3–5 cm
Camera Kit26 MP APS-C
Effective Pixels6252 × 4168
Sensor Size23.5 × 15.7 mm
Focal Length16mm
FOV83°
GSD @ 100 m2.3 cm
Positioning Accuracy (RMS)0.5cm + 1ppm (PPK)
GNSS Data RateUp to 20 Hz
IMU Data RateUp to 1000 Hz
INS Data RateUp to 1000 Hz
Roll & Pitch Accuracy<0.01°
Heading Accuracy<0.05°
CoverageGlobal
Accuracy (Horizontal)1.5 cm
Accuracy (Vertical)3 cm
Convergence<3 minutes
Signal Stability99.99%
Weight1.15 kg
Scanner ModelHesai Pandar XT-32M2X
Measurement Range0.5–300 m
Field of View (Vertical)40.3° (-20.8° ~ +19.5°)
Vertical Resolution1.3°
Returns SupportedSingle / Dual / Triple Return
Max Effective Measurement Rate1,920,000 pts/sec (Triple)
