Real-time Scanning, Real-time Results
See your 3D data come to life as you scan. Eliminate reshoots and boost field productivity with real-time point cloud visualization.

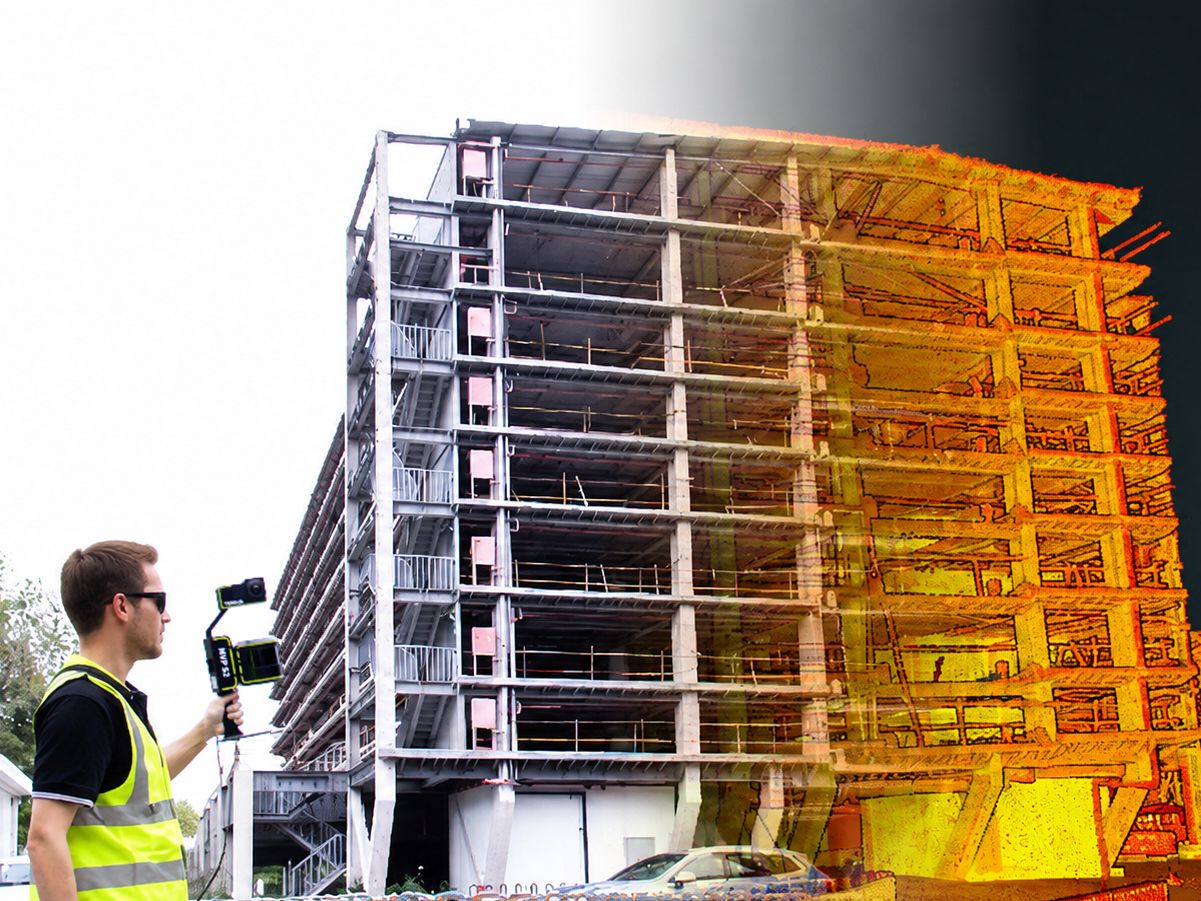

1 CM Thickness, 3 CM Absolute Accuracy
High-density point clouds with 1 cm thickness, capturing fine structural details. 3 cm absolute accuracy, making it meets the requirements of high-precision 3D mapping applications.

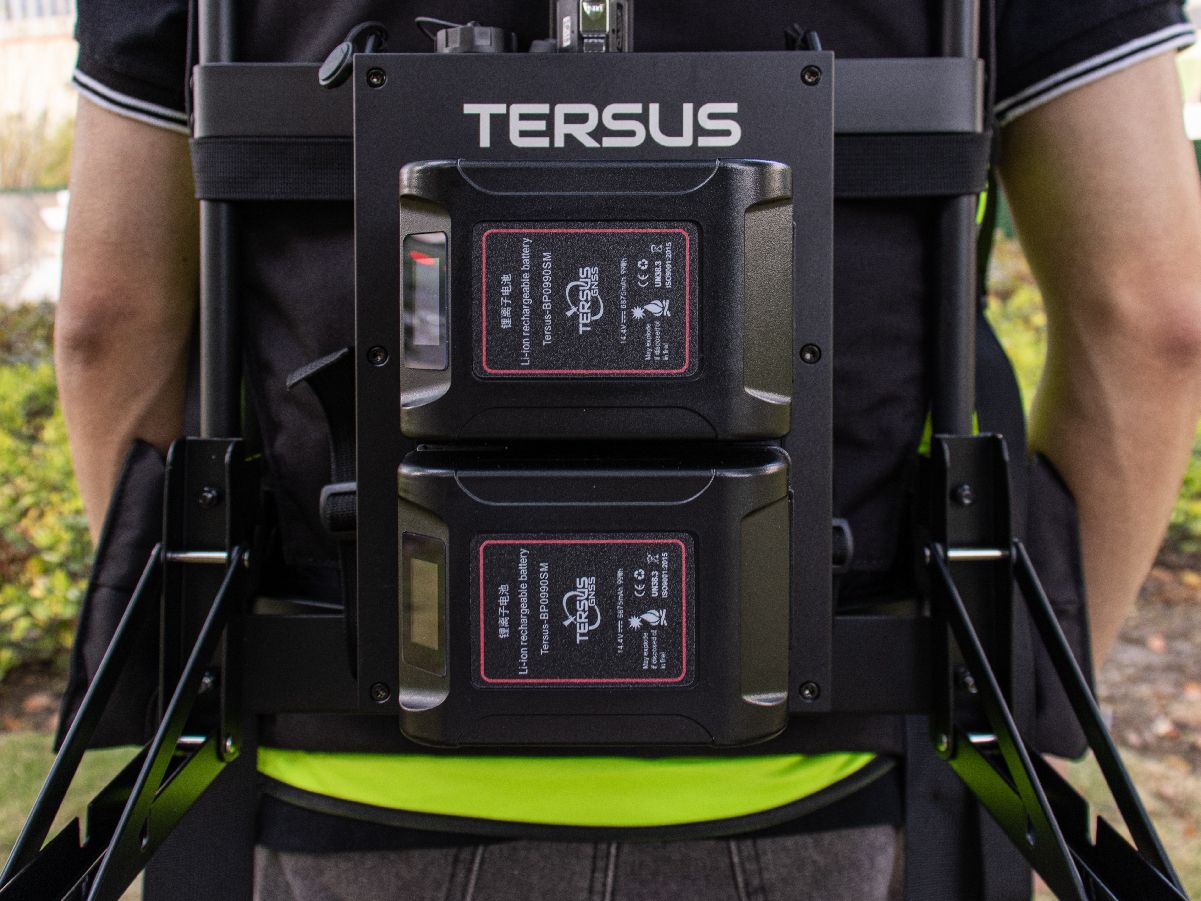

Hot-Swap Battery, Nonstop Operation
Work as long as you do—up to 3 hours per battery set, with hot-swappable support for uninterrupted missions.

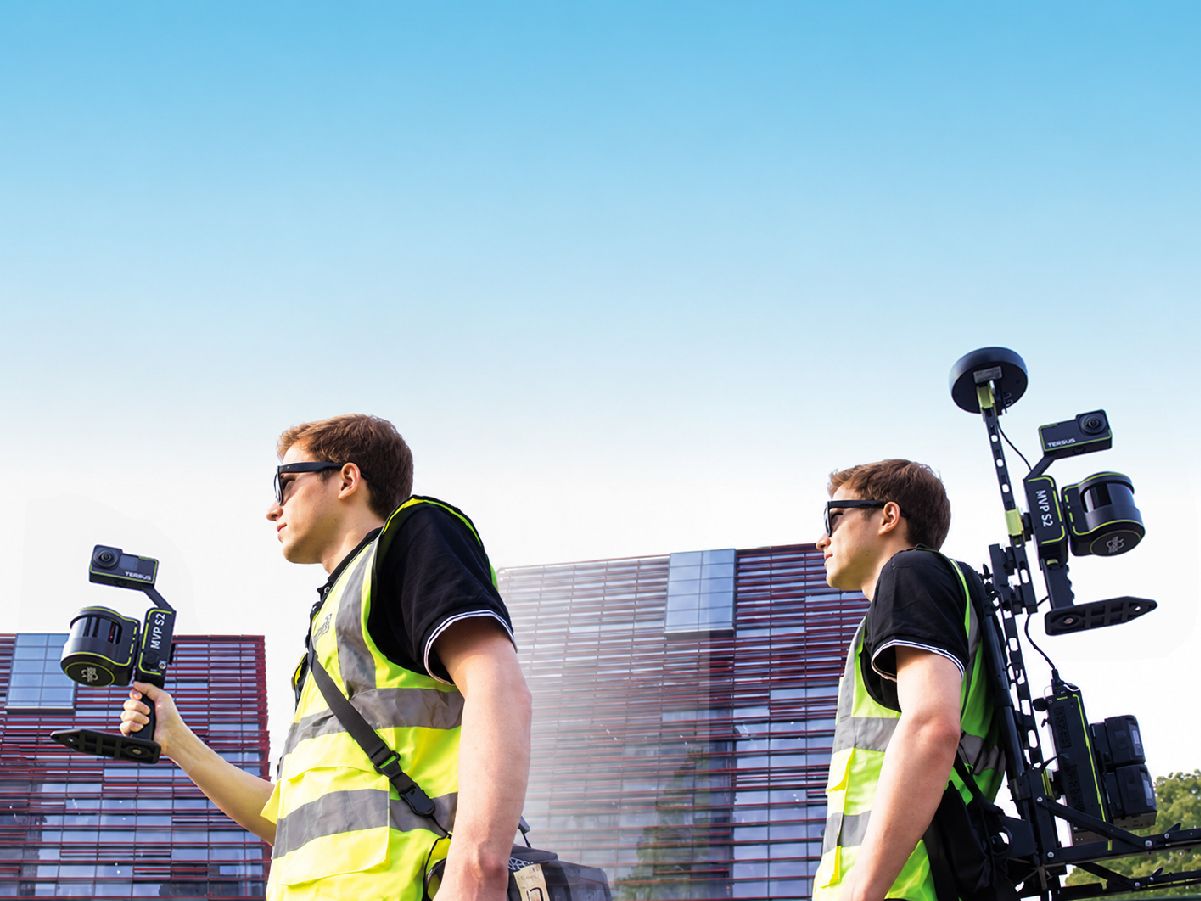

Handheld or Backpack, Flexible Choice
Supports both handheld and backpack modes, allowing flexible configuration based on operational needs for easy scanning.
Remove Moving Objects, Cleaner Point Cloud
Intelligent moving object filtering removes distractions for sharper, cleaner point cloud.

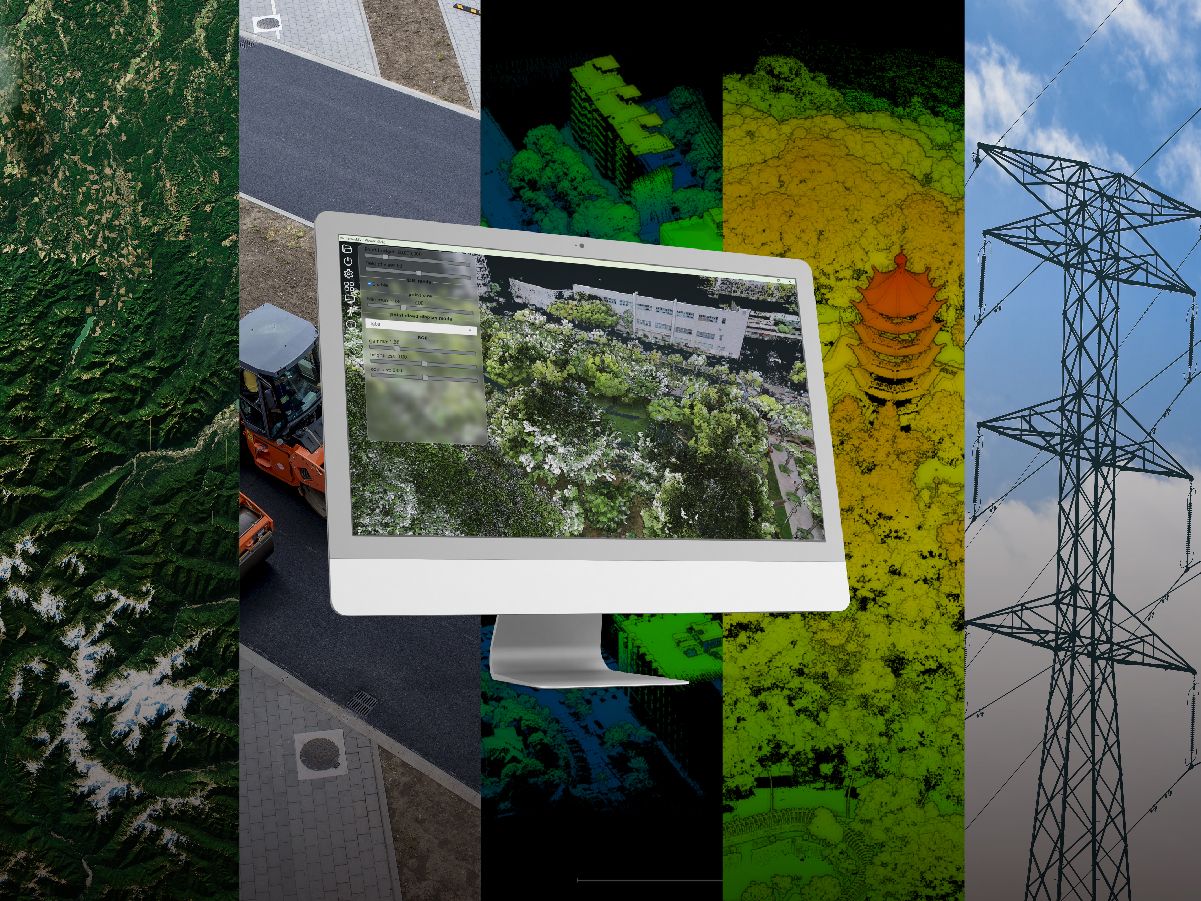

All-in-One System, Diverse Application Scenarios
Technical Specifications
Relative Accuracy1cm
Absolute Accuracy3cm
Point Cloud Thickness1cm
Field of View360° × 270°
Weight2.1kg (handheld) / 8.7kg (backpack)
Battery Single Use DurationUp to 3 hours
Operating Temperature-25°C ~ +65°C
Dust & WaterproofIP54
Data Storage1TB
Laser ClassClass 1 Eye Safe
Laser Channels32
Wavelength905 nm
Measurement Range120m
Scan Rate640,000 pts/sec
Frame Rate5 Hz, 10 Hz, 20 Hz
Horizontal Resolution0.09° (5Hz) / 0.18° (10Hz) / 0.36° (20Hz)
Vertical Resolution1.3°
Returns SupportedSingle Return (Last, Strongest, First) / Dual Returns
LiDAR Accuracy / Precision10mm / 5mm
Camera Module21 MP, 1-inch SONY CMOS ×2, 360° FOV
Signal TrackingGPS L1/L2/L5, BeiDou B1I/B2I/B3I/B1C/B2a, GLONASS L1/L2, QZSS L1/L2/L5, SBAS, L-band
RTK Accuracy (Horizontal)0.8cm + 1ppm
RTK Accuracy (Vertical)1.5cm + 1ppm
PPP (TAP) Accuracy (Horizontal)1.5cm
PPP (TAP) Accuracy (Vertical)3cm
TersusMVP CaptureReal-time point cloud generation and device status monitoring
TersusMVP MapperCoordinate transformation, moving objects filtering, GCP support
TersusMVP ViewerImage and point cloud interaction, measurement, roaming view
Documents
Firmware, software installers and configuration tools for this product are in the MyTersus portal. Open product downloads
